Accurate and reliable dosing of alternative fuels and biomass
True fuel flexibility: a multi-fuel rotor weighfeeder you can rely on
Introducing alternative fuels can be daunting. How will it affect your process? Which fuels are available to you? How will the local community respond? To help you answer these questions in an affordable way, we’ve developed the PFISTER® AF Starter Kit, a Plug and Play solution that allows you to ‘test drive’ alternative fuels.
The kit comprises:
- Reception of the materials – choose either infeed hoppers or a docking station;
- Dosing using the renowned PFISTER TRW/S-D rotor;
- Pneumatic transport to the burner;
- Optional addition of the JETFLEX® burner;
- Atex execution on request;
- Blowerwith acoustic hood
The system is designed for processed, pneumatic conveyable, alternative fuels such as wood chips, rice husk and RDF at a feed rate up to 6 t/h as standard, or higher on request. It is easily integrated into existing plants so you can start seeing the results quickly. The optional addition of the JETFLEX® PLUS burner with rotatable jet air nozzles for maximum AF substitution gives the added benefits of increased fuel retention time, fuel flexibility, energy efficiency and low emissions.
Material storage systems
There are virtually no limits on material storage and retrieval design. For example, a storage hall with intermediate silo, automatic crane and truck receiving station, a silo with walking floor extraction and a silo with a rotating screw extractor. Every installation can be tailored to your specific requirements

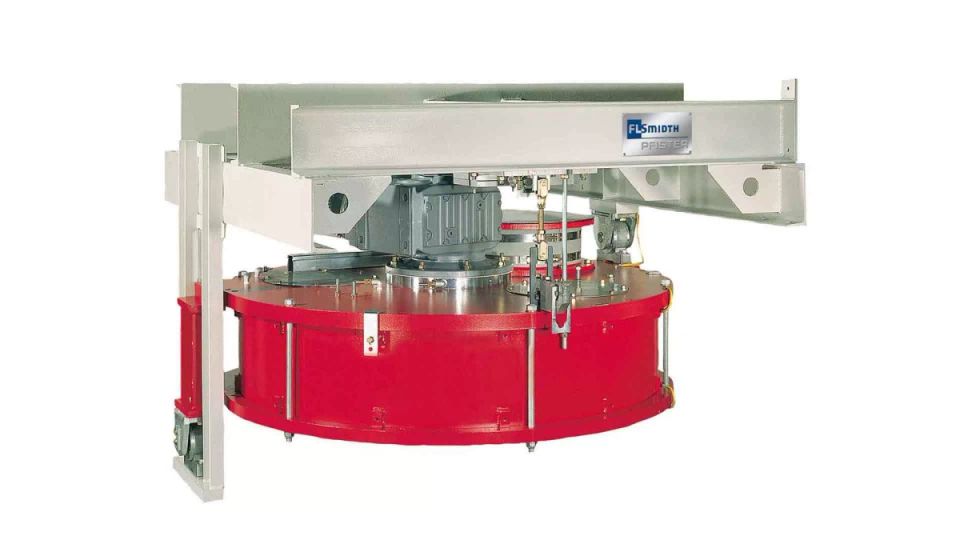

The PFISTER® TRW-S/D is based on the same weighing and dosing principle as all PFISTER® rotor weighfeeders, but has been adapted through extensive research at our laboratory to provide reliable and accurate feeding of a wide range of alternative fuels, including:
- Refuse derive fuels (RDF)
- Clima fuels
- Biomass (e.g. wood chips, saw dust, sewage sludge, animal meal)
- Industrial waste
These fuels are hugely variable: dry, moist, chipped, chunky. But they can all be handled by the PFISTER® TRW-S/D multifuel rotor weighfeeder – not different feeders for different fuels, but just one system to manage nearly all solid alternative fuels. It’s designed for real life applications where alternative fuel sources are likely to be varied and feed quality inconsistent.
What else do you need from your alternative fuel dosing system?
- Stable fuel dosing
- Outstanding reliability
- High short- and long-term accuracy
- Compact, robust, enclosed dosing system
- Optional explosion-proof design
- Large feeding range
- Online calibration during operation
- Easy maintenance
We’ve got you covered. The PFISTER® TRW-S/D system includes material extraction, weighing, dosing and feeding. It can be designed to be pressure-shock resistant and ATEX approved (the PFISTER® TRWD model) to meet the safety requirements of a wide range of alternative fuels. And it can be used for mechanical or pneumatic transport. It’s your choice.
Safe. Clean. Efficient. Flexible. Reliable. The PFISTER® TRW-S/D
Alternative fuels are the green choice – but they can still be damaging to the environment if not properly managed. Feed systems should be absolutely dust and air-tight to avoid any of the feed escaping to the surroundings and to prevent dust and odour emissions. ThePFISTER® TRW-S/D rotor weighfeeder is completed enclosed and dust-free. Safer. Cleaner.
- Minimal maintenance
We know that continuous operation is best for your kiln. That’s why we keep maintenance to a minimum. All machine parts in contact with material are made from steel, so wear is negligible. Moving parts are minimised, and there’s just one rotating part: the rotor wheel itself. As an enclosed system, it’s not exposed to dust from outside – in fact, the centre bearing is purge air-sealed to eliminate dust penetration, so even with dusty materials very little cleaning is needed.
And for the little maintenance that is needed, access is available from outside the equipment so maintenance stops are quick, easy and safe.
- Fuel homogenisation in the prehopper
The PFISTER® TRW-S/D includes a pre-feeder hopper with stirrer arm above the rotor weighfeeder. This provides several advantages:
- It homogenises the material to give a more consistent fuel quality;
- It ensures the steady loading of the rotor weighfeeder, even if there is a brief interruption in supply;
- When equipped with load cells, it enables periodic online calibration of the weighfeeder, which enables a comparison of the static load and the continuous weighing result from the rotor weighfeeder.
- Multi-fuel system
One of the major issues when dealing with solid alternative fuels is finding a reliable supplier. Most likely, the source – and therefore the material characteristics – will change.
FLSmidth has experience in nearly all kinds of materials. Variations in density and size are accounted for by the gravimetric feeding system. And because of the large amount of weighed material in the system, it is possible to feed fuels with a very low density. The PFISTER® TRW-S/D is designed to handle fuel material densities from 0.05 t/m³ to 0.7 t/m³ with the same machine, giving you maximum flexibility.
- High feeding accuracy
Stable kiln operation and complete combustion – that’s what you want to achieve with your alternative fuels. And for us, that means dosing with high accuracy and consistency. The PFISTER® TRW-S/D doses with the highest accuracy, guaranteeing a maximum deviation in the actual and set feed rate of ±1.0%.
Very light materials such as plastic could be difficult to measure because of their very low gravimetric force. We solve for this by ensuring high bulk loads. PFISTER® rotor weighfeeders can measure a material layer of up to 500 mm in the feeder without the risk of material spilling. This relatively large mass of bulk material leads to a high momentary load in the measuring section of the feeder.
- To keep you safe and comply with local regulations, PFISTER® rotor weighfeeders can be designed to be explosion-proof for up to 10 bars pressure overload. Pfister® TRW-D is approved according to EC-type examination.
Gravimetric feeding with advanced weighing electronics
The PFISTER® TRW-S/D is especially designed for dosing alternative fuels. But all PFISTER® rotor weighfeeders operate on the same weighing and dosing principle, illustrated in the picture below.
Weighing and dosing principle
These advanced weighing electronics use ProsCon® prospective control to react almost instantly to changes in the feed make-up that would otherwise affect dosing accuracy. It’s a proactive approach to dealing with variable feed materials such as alternative fuels and is particularly effective in this multifuel rotor weighfeeder.
